Fan Coil Unit
Coolmar central air conditioning systems are completed by the connection of the fan coil units to Coolmar chiller units. Hot or cold water distributed in the rooms through Coolmar fan coil units are supplied by chiller units from the engine room. Fan coil unit capacity ranges are designed from 4, 000 up to 24, 000 Btu/h. Total capacity of fan coil units installed in the rooms are approximately equal to the chiller unit capacity in the engine room.
Coolmar fan coil units have special control unit options, excellent view, sophisticated functions that enable you to get the control of your own atmosphere on your finger touches.
MAF fan coil units are also compact designed small size equipment with high quality components and high efficiency. Heat exchanger is blue hydrophilic coated, fan has external rotor motor that needs no extra space.

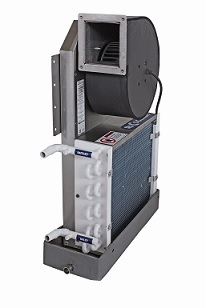

For limited installation spaces, MAF-SV vertical slimline and MAF-CF cross-flow types are also available.
MAF Series (Standard FCU) capacity chart
| Model No |
Power Supply |
Capacity (Btu/h)
|
Capacity (Kcal/h)
|
Power Consumption (W)
|
Operating Current (A)
|
Air Flow (m3/h)
|
| MAF-004 |
230V / 1Ph / 50-60 Hz |
4, 000 |
1, 010 |
80 |
0.3 |
200 |
| MAF-008 |
7, 500 |
1, 894 |
115 |
0.5 |
275 |
| MAF-010 |
9, 700 |
2, 449 |
115 |
0.5 |
320 |
| MAF-012 |
12, 500 |
3, 157 |
180 |
0.8 |
520 |
| MAF-016 |
16, 000 |
4, 040 |
180 |
0.8 |
650 |
| MAF-020 |
20, 000 |
5, 051 |
300 |
1.4 |
950 |
| MAF-024 |
24, 000 |
6, 061 |
330 |
1.5 |
1, 200 |
|
MAF-CF Series (Cross-flow FCU) Capacity chart
| Model No |
Power Supply |
Capacity (Btu/h)
|
Capacity (Kcal/h)
|
Power Consumption (W)
|
Operating Current (A)
|
Air Flow (m3/h)
|
| MAF-CV004 |
230V / 1Ph / 50-60 Hz |
4, 000 |
1, 010 |
29 |
0.13 |
150 |
| MAF-CV006 |
6, 000 |
1, 515 |
33 |
0.15 |
170 |
| MAF-CV008 |
7, 500 |
1, 894 |
45 |
0.2 |
230 |
| MAF-CV010 |
9, 700 |
2, 449 |
45 |
0.2 |
230 |
| MAF-CV012 |
12, 500 |
3, 157 |
45 |
0.2 |
230 |
| MAF-CV016 |
16, 000 |
4, 040 |
65 |
0.3 |
420 |
|
MAF-SV Series (Slimline FCU) Capacity chart
| Model No |
Power Supply |
Capacity (Btu/h)
|
Capacity (Kcal/h)
|
Power Consumption (W)
|
Operating Current (A)
|
Air Flow (m3/h)
|
| MAF-SV004 |
230V / 1Ph / 50-60 Hz |
4, 000 |
1, 010 |
80 |
0.3 |
200 |
| MAF-SV008 |
7, 500 |
1, 894 |
115 |
0.5 |
275 |
| MAF-SV010 |
9, 700 |
2, 449 |
115 |
0.5 |
320 |
| MAF-SV012 |
12, 500 |
3, 157 |
180 |
0.8 |
520 |
| MAF-SV016 |
16, 000 |
4, 040 |
180 |
0.8 |
650 |
| MAF-SV020 |
20, 000 |
5, 051 |
300 |
1.4 |
950 |
| MAF-SV024 |
24, 000 |
6, 061 |
330 |
1.5 |
1, 200 |
|
Capacities are based on:
| COOLING |
Room Temp. : 19.5°C / 27°C (WB/DB) |
Water Temp. : 35°C |
| HEATING |
Room Temp. : 16°C / 22°C (WB/DB) |
Water Temp. : 8°C |
|
